Miliary Pump – Water or Fuel

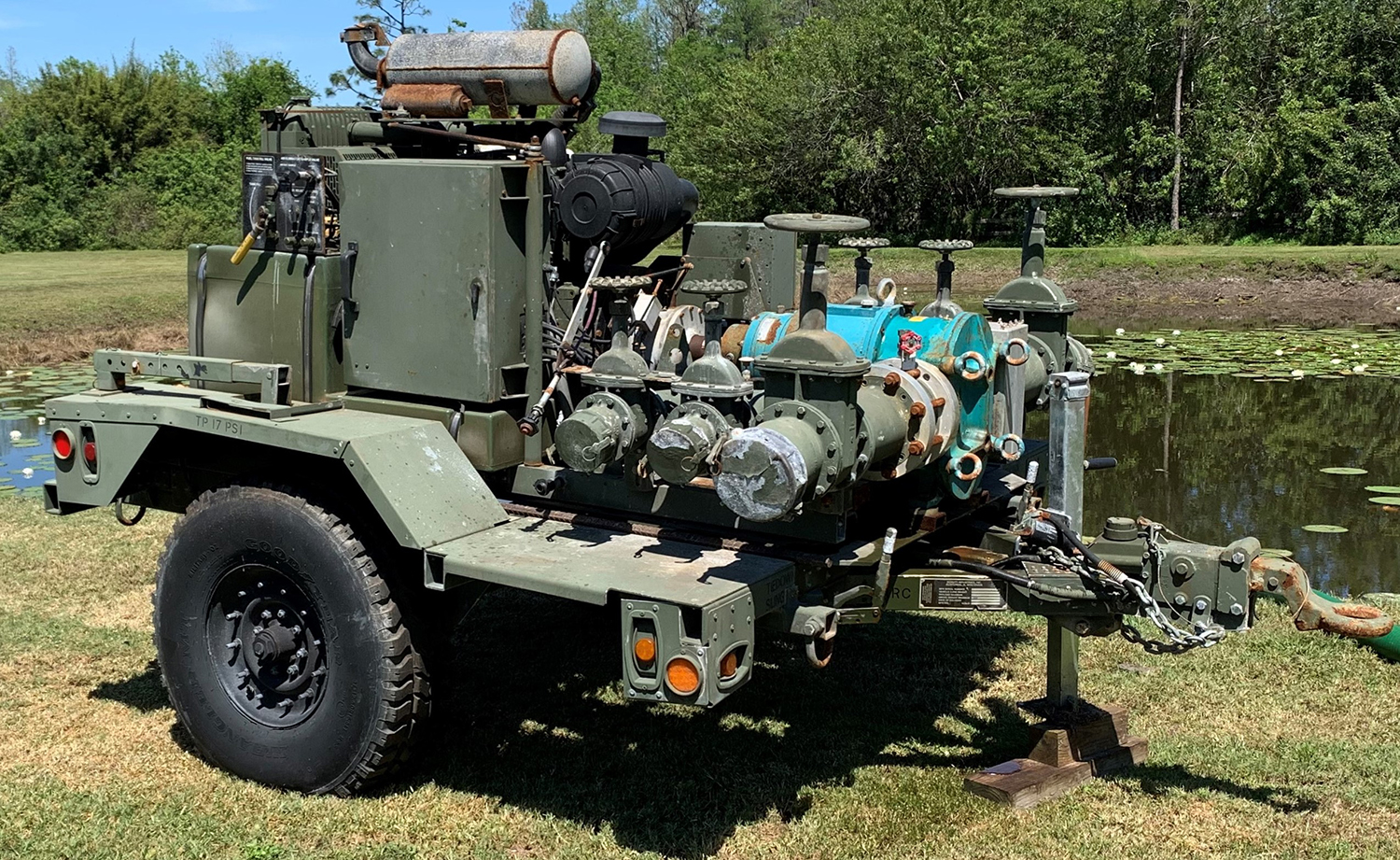

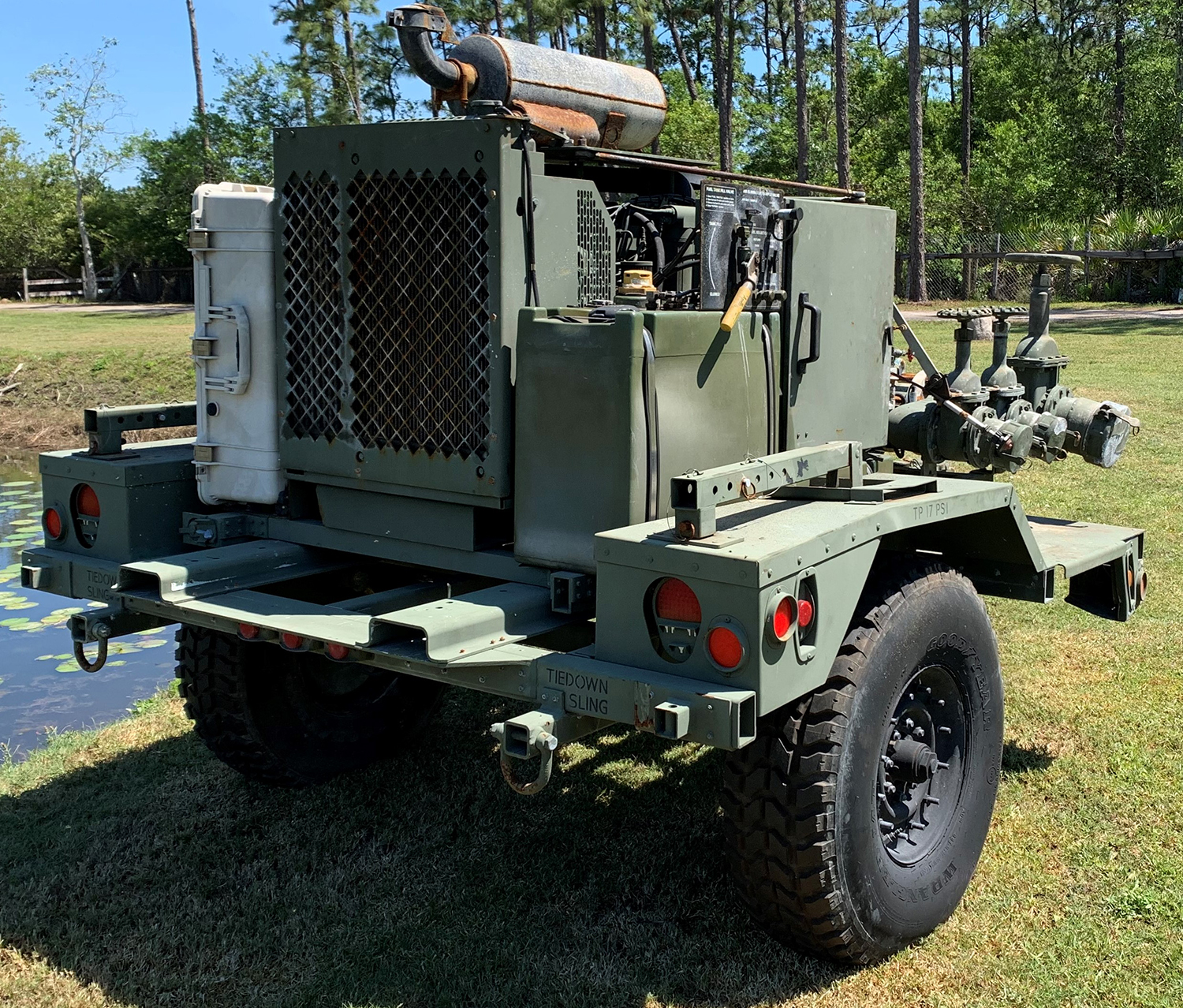

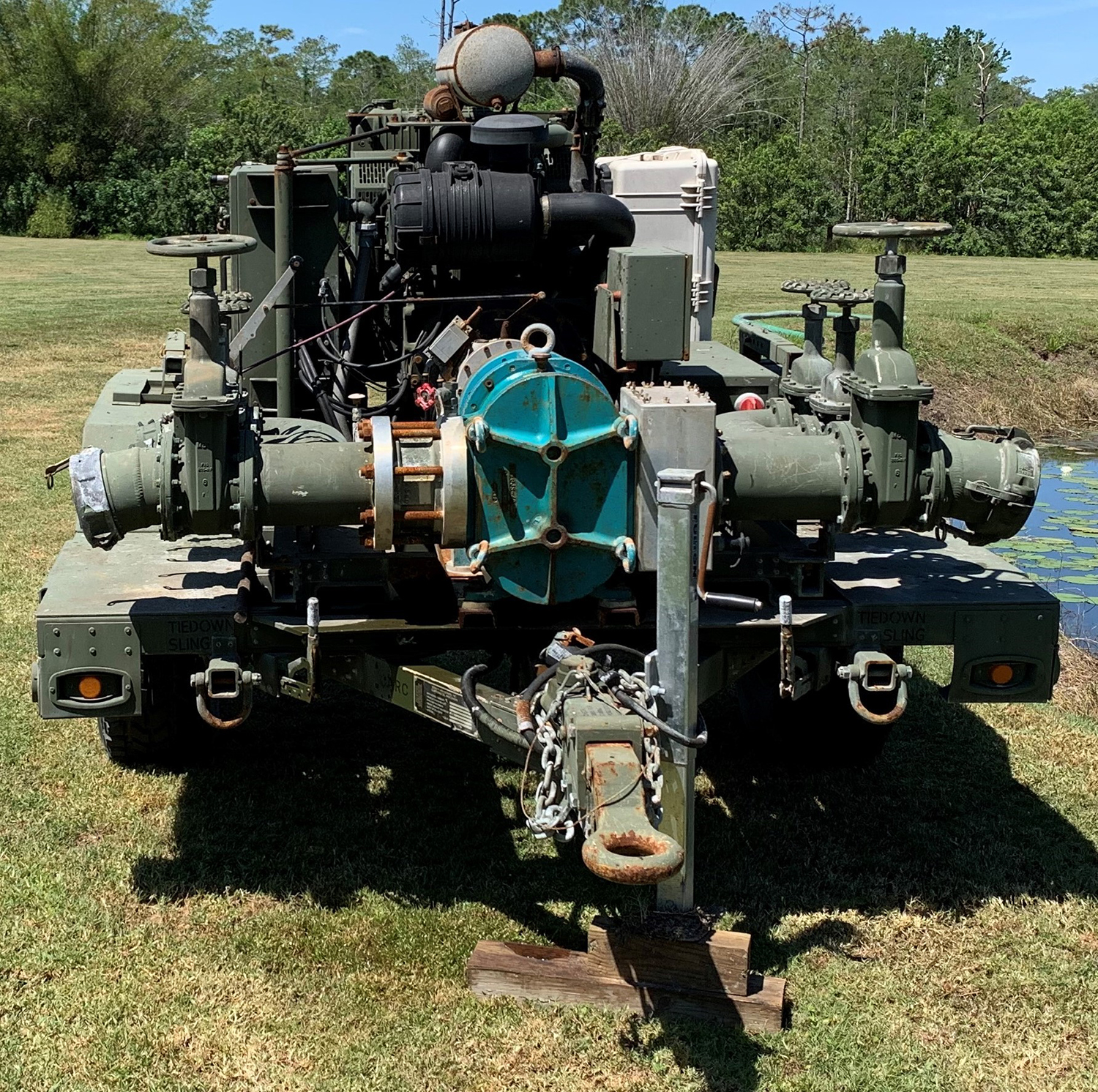

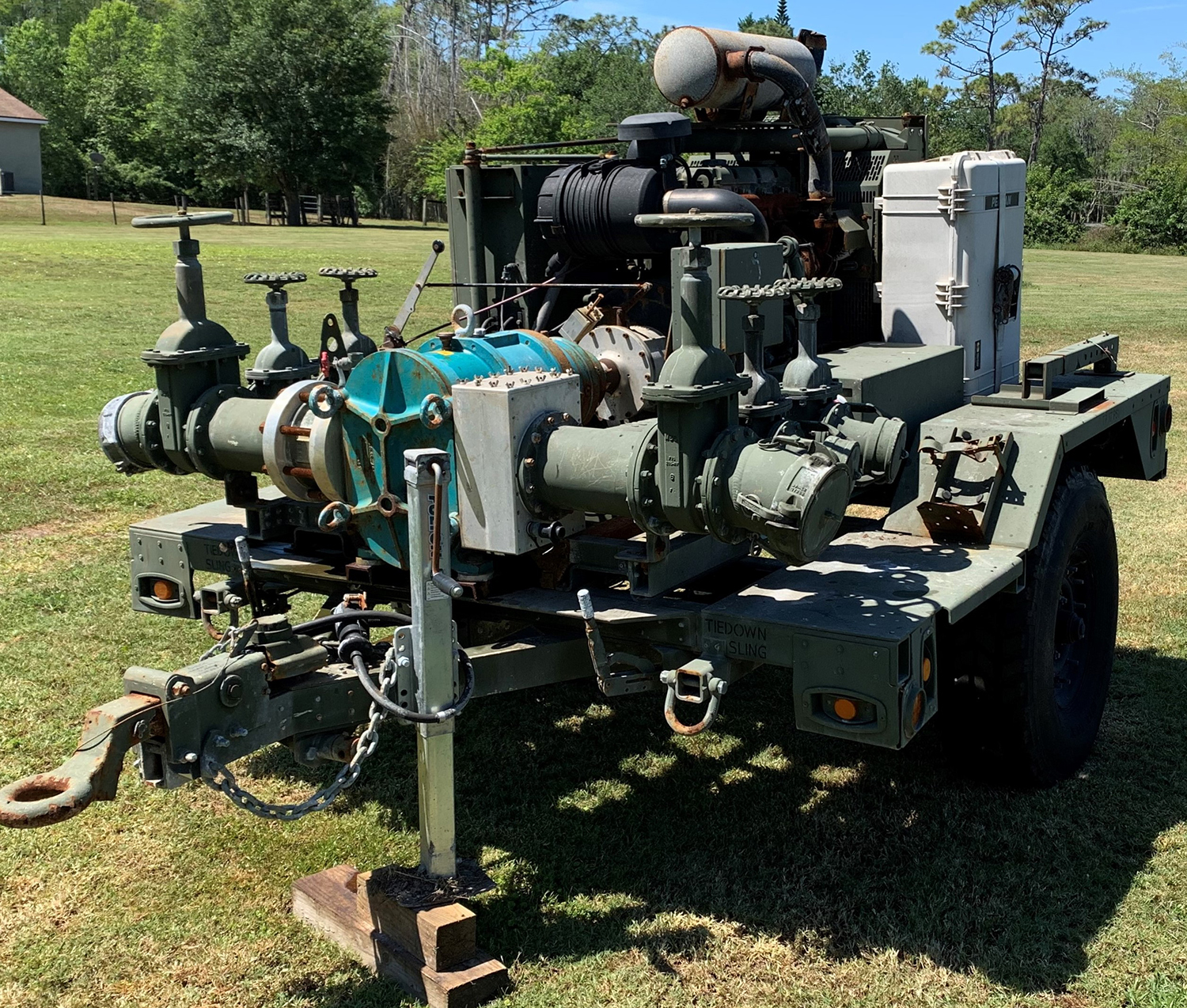

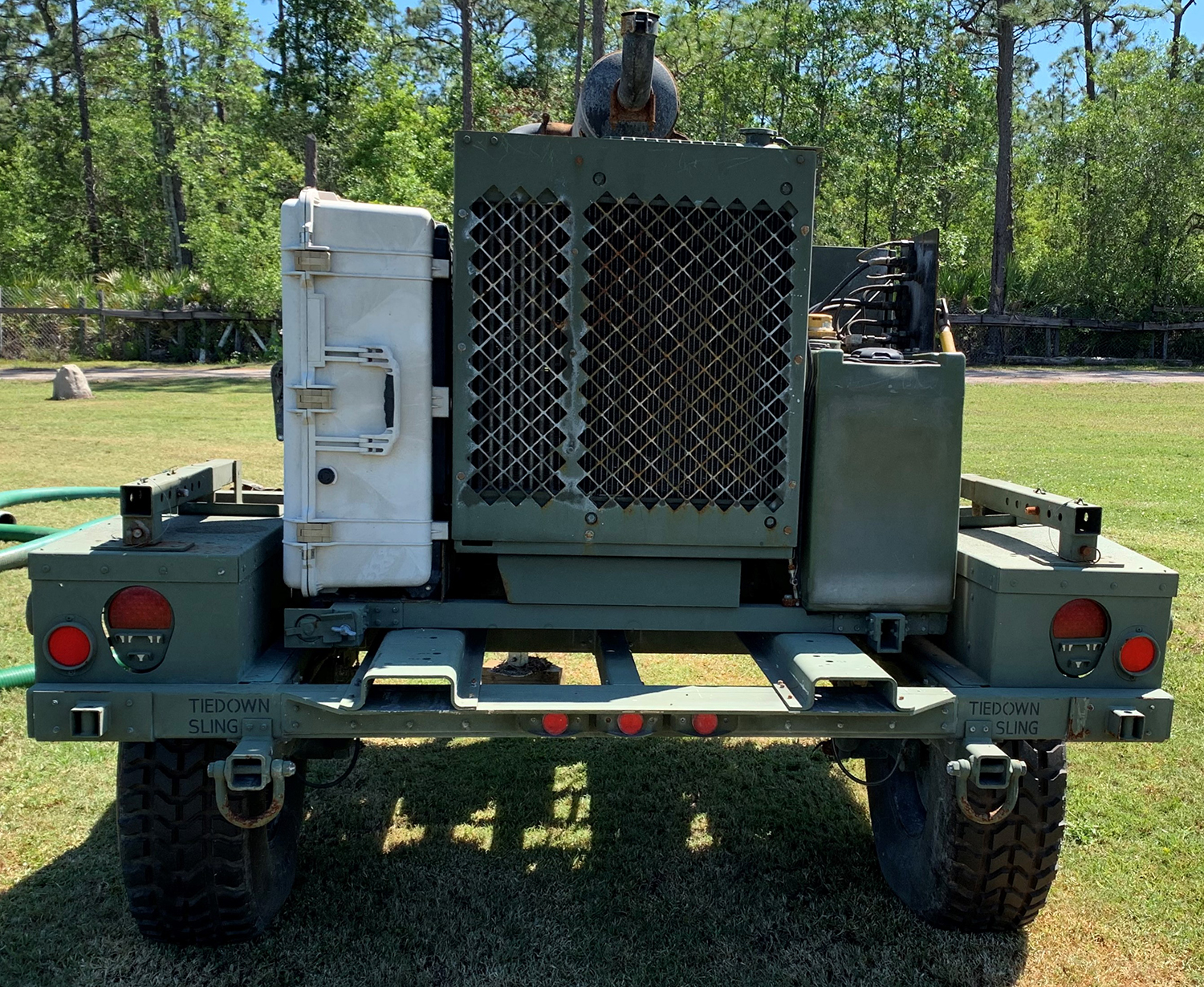

Military Ornelas Fuel or Water Pump with CAT Engine and Boerger Pump. Ornelas 600 GPM Military pump for fuel or water using positive displacement rotary lobe pump. The fluid enters ithe side with the female camlocks, passes through gate valves and into the suction maifold. Then passes through strainter and into 600GPM Borger Rotary Lobe pump. From there, the fluid is routed back through the discharge manifold gate valves and out the camlock male fittings.

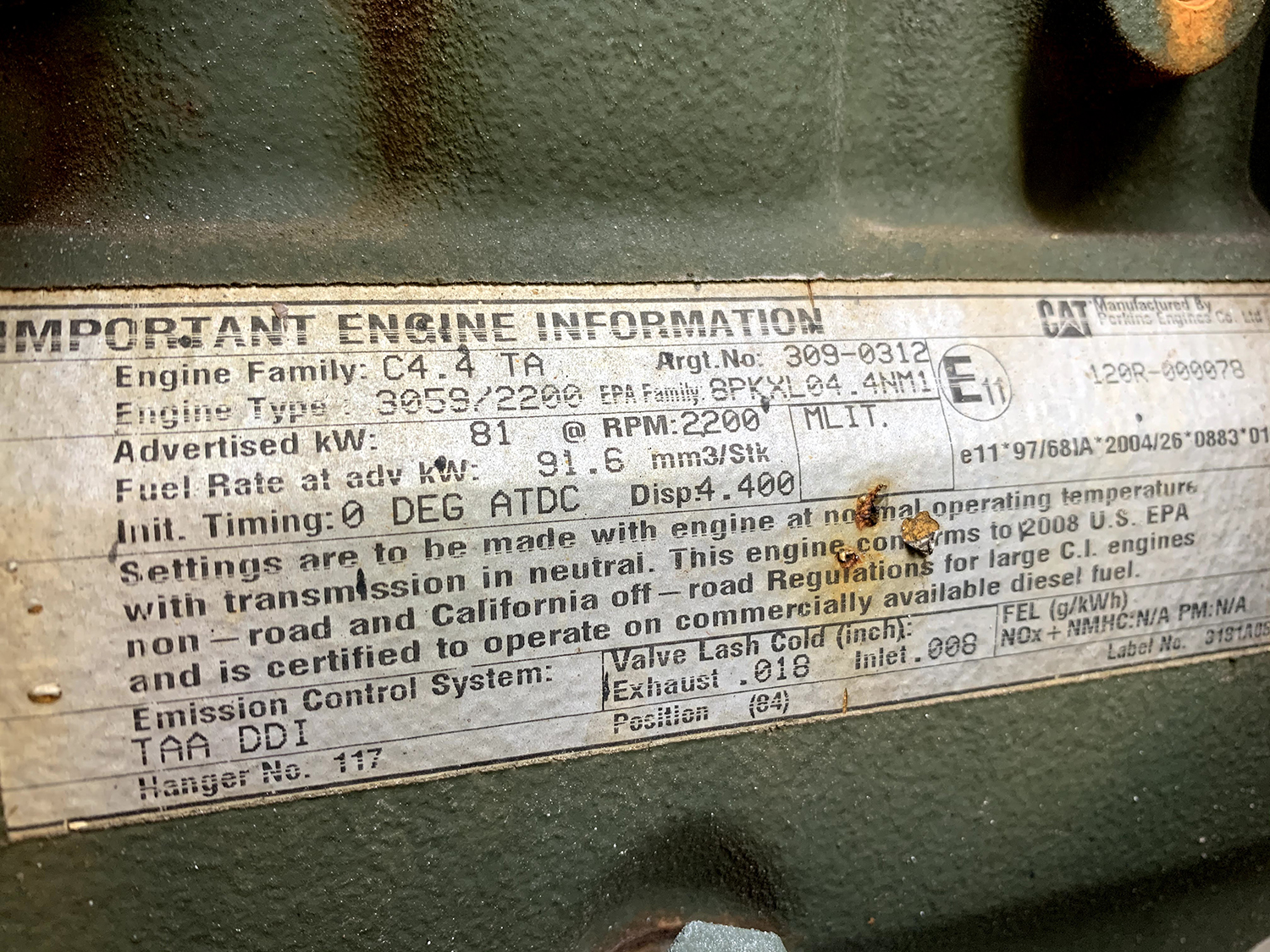

Unit has only 254 hours on the New Cat 4.4 Turbocharged 4-cylinder engine installed in late 2018. 142hp water cooled engine.Pump: 600 per minute at 150 PSI, self priming, rotary lobe positive placement.

Inlet size : one 6″ and two 4″ camlock with gate valves / Outles size: one 6″ and two 4″ with gate valves

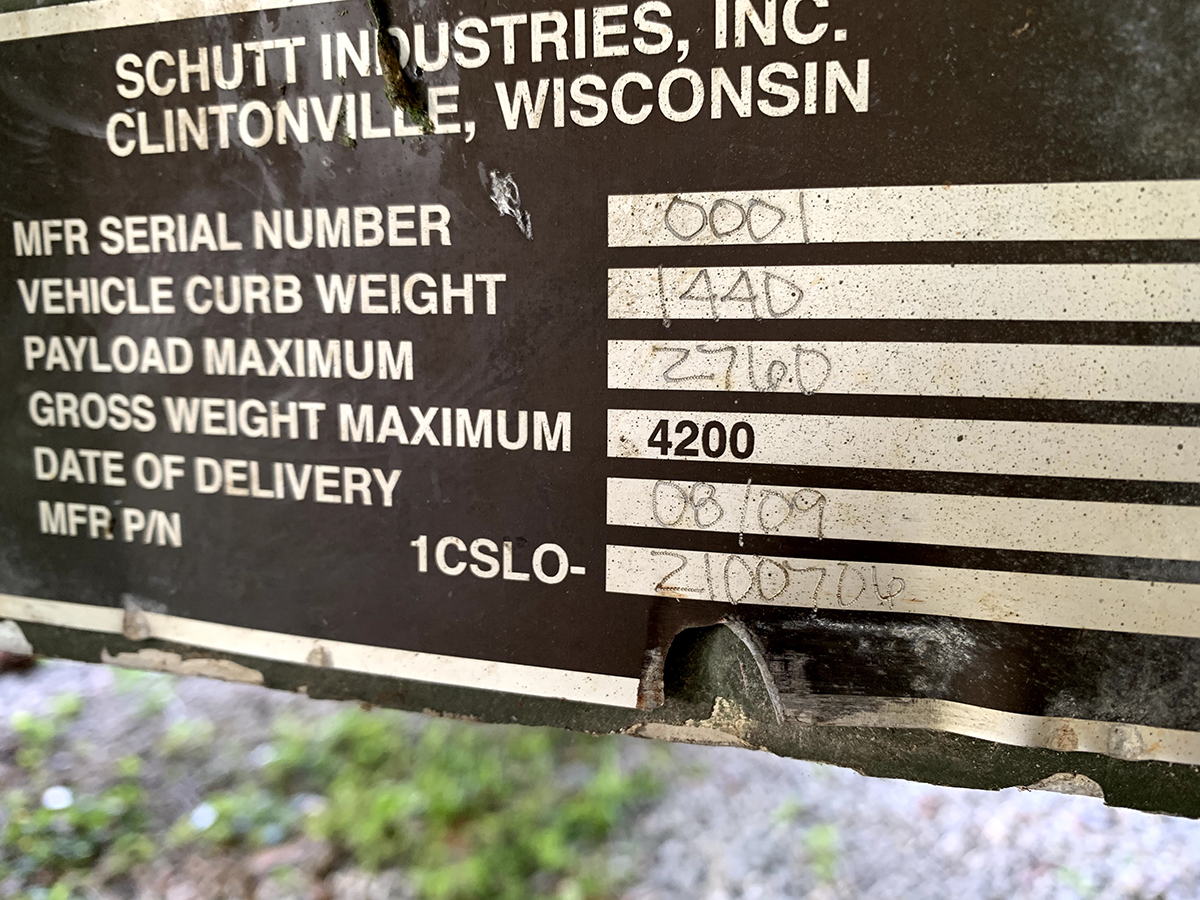

Includes Schutt Industries trailer LTT-MCC built for the Marines. 12″ hydraulic brakes. Tires are 37 x 12.5 x 16.5. Gross weight 4200lbs.Computerized control panel.Have manuals, two lobe systems and lobe pulling partsWe offer dredging services in the Bahamas in locations such as Exumas, Grand Bahamas, Freeport, Marsh Island, Abacos, Bimini, Eleuthera, Andros, Cat Island, Long Island, Georetown, Elbow Cay, as well as the Southeastern United States like Florida, Alabama, South Carolina, North Carolina, Lousiana and Georgia.
